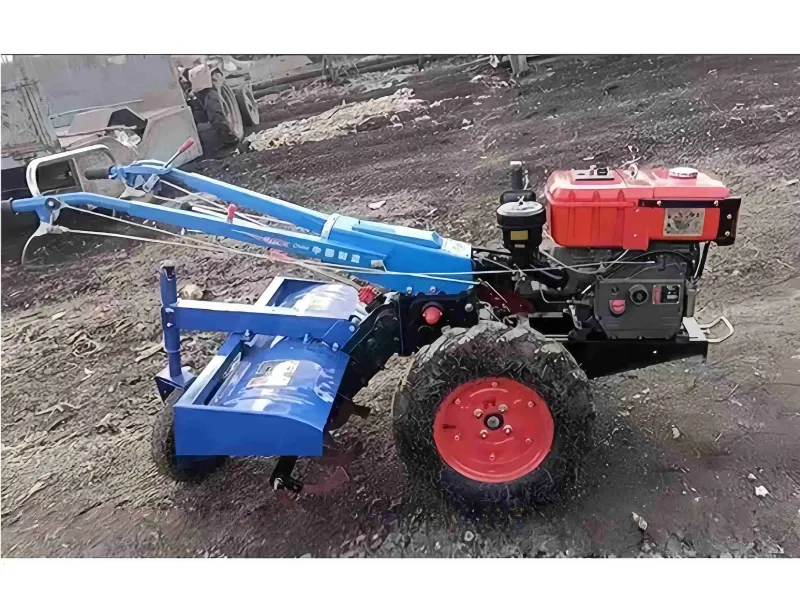

12 HP Hand-Driven Tractor: Power for Modern Agriculture
12 Horsepower Ride-On Tractor: Robust Power for Modern Agriculture
Power: 12 HP (8.8 kW), single-cylinder (water-cooled), four-stroke engine, optimized for performance under pressure.
Rugged Design: Dimensions 2170 x 845 x 1150 mm, weight 290 kg, constructed with corrosion-resistant steel to withstand arid and humid climates.
Advanced Transmission: 6 forward gears + 2 reverse gears, hydraulic clutch for smooth and precise shifting.
Maximum Traction: Approx. 2200 N, compatible with heavy implements such as multi-plows, industrial rotorizers, and complete combine harvesters.
12 Horsepower Ride-On Tractor: Robust Power for Modern Agriculture
The 12 HP ride-on tractor is the ultimate solution for farmers who demand power and versatility in semi-technical farming!
Designed for heavy-duty tasks such as deep tillage, mass planting, and heavy load transport, this equipment is ideal for farms up to 15 hectares in different regions.
Key Features
Power: 12 HP (8.8 kW), single-cylinder (water-cooled), four-stroke engine, optimized for performance under pressure.
Rugged Design: Dimensions 2170 x 845 x 1150 mm, weight 290 kg, constructed with corrosion-resistant steel to withstand arid and humid climates.
Advanced Transmission: 6 forward gears + 2 reverse gears, hydraulic clutch for smooth and precise shifting.
Maximum Traction: Approx.2200 N, compatible with heavy implements such as multi-plows, industrial rotorizers, and complete combine harvesters.
Specific Applications:
1. Deep Soil Preparation
Multi-Layer Tillage: With a multi-plow, it penetrates up to 30 cm deep, eliminating thick roots and improving water retention in compacted soils.
Industrial Spraying: Combined with a 1.5 m wide rotorizer, it processes up to 2 hectares per hour, ideal for soybean or sugarcane crops.
2. Large-Scale Planting and Harvesting
Large-Capacity Seeder: Applies up to 500 kg of seed per hour, integrating liquid fertilizer for automated processes.
Integrated Harvester: Adaptable to corn, wheat, and rice, it reduces harvesting time by up to 40% on medium-sized plots.
Specific Applications:
1. Deep Soil Preparation
Multi-Layer Tillage: With a multi-plow, it penetrates up to 30 cm deep, eliminating thick roots and improving water retention in compacted soils.
Industrial Spraying: Combined with a 1.5 m wide rotorizer, it processes up to 2 hectares per hour, ideal for soybean or sugarcane crops.
2. Large-Scale Planting and Harvesting
Large-Capacity Seeder: Applies up to 500 kg of seed per hour, integrating liquid fertilizer for automated processes.
Integrated Harvester: Adaptable to corn, wheat, and rice, it reduces harvesting time by up to 40% on medium-sized plots.
3. Heavy-Duty Transport and Maintenance

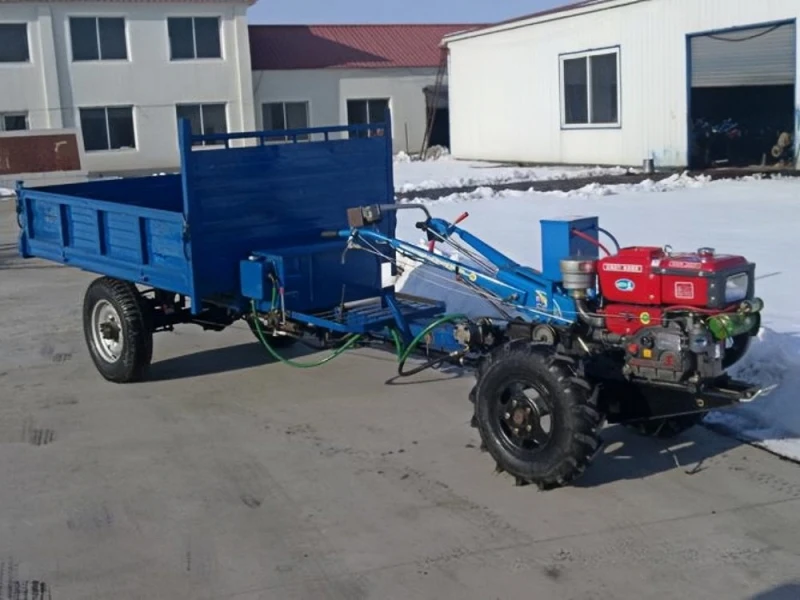

Heavy-Duty Load: Transports up to 1 ton of fertilizer or harvested crops with a special forklift, thanks to its reinforced rear-wheel drive system.
Industrial Irrigation: It can pull high-pressure water pumps for sprinkler irrigation over large areas.
Technical Parameters
Parámetro
Tráctor Manejado de 8 HP
Tráctor Manejado de 10 HP
Tráctor Manejado de 12 HP
Potencia
Aprox. 5.88 kW
7.35 – 8.8 kW
Aprox. 8.8 kW
Fuerza de Tracción
Aprox. 1700 N
Aprox. 1900 N
Aprox. 2200 N
Dimensiones (LxAnxAl)
2170*890*1150 mm
2170*845*1150 mm
2170*845*1150 mm
Claro Mínimo
210 mm
210 mm
220 mm
Peso Estructural
230 kg
290 kg
290 kg
Tipo de Clutch
Friccional Monodisco/Dibisco
Friccional Monodisco/Dibisco
Friccional Monodisco/Dibisco
Tipo de Direccionador
Con Engranajes
Con Engranajes
Con Engranajes
Tipo de Freno
Interno Anulare
Interno Anulare
Interno Anulare
Correa Triangular
Dos correas B1800
Dos correas B1800
Dos correas B1800
Modelo de Llanta
6.00 – 12
Tipo 600 – 12
Tipo 600 – 12
Calzado
640 – 680 mm
680 – 750 mm
680 – 750 mm
Tipo de Tráctor
Tractor de Tracción y Accionamiento
Tractor de Accionamiento y Tracción
Tractor de Accionamiento y Tracción
Número de Marchas (Av/Ret)
6.00-12
6.00-12
6.00-12
Tipo de Motor
Motor monocilíndrico, horizontal,
Motor monocilíndrico, horizontal, refrigeración por agua,cuatro tiempos
Motor monocilíndrico, horizontal, refrigeración por agua,cuatro tiempos
Modelo del Motor
–
HZ190/192/195
190/192/195
Adaptable to a variety of agricultural implements
Why Choose Our 12 HP Tractor?
Increased Productivity: Ability to work 8-10 hours a day without overheating, thanks to its optimized cooling system.
Future Investment: Designed to adapt to technological implements (GPS, sensors), ready for smart agriculture.
Support Network: Technical workshops in more than 20 cities in the world, with original spare parts in stock.
